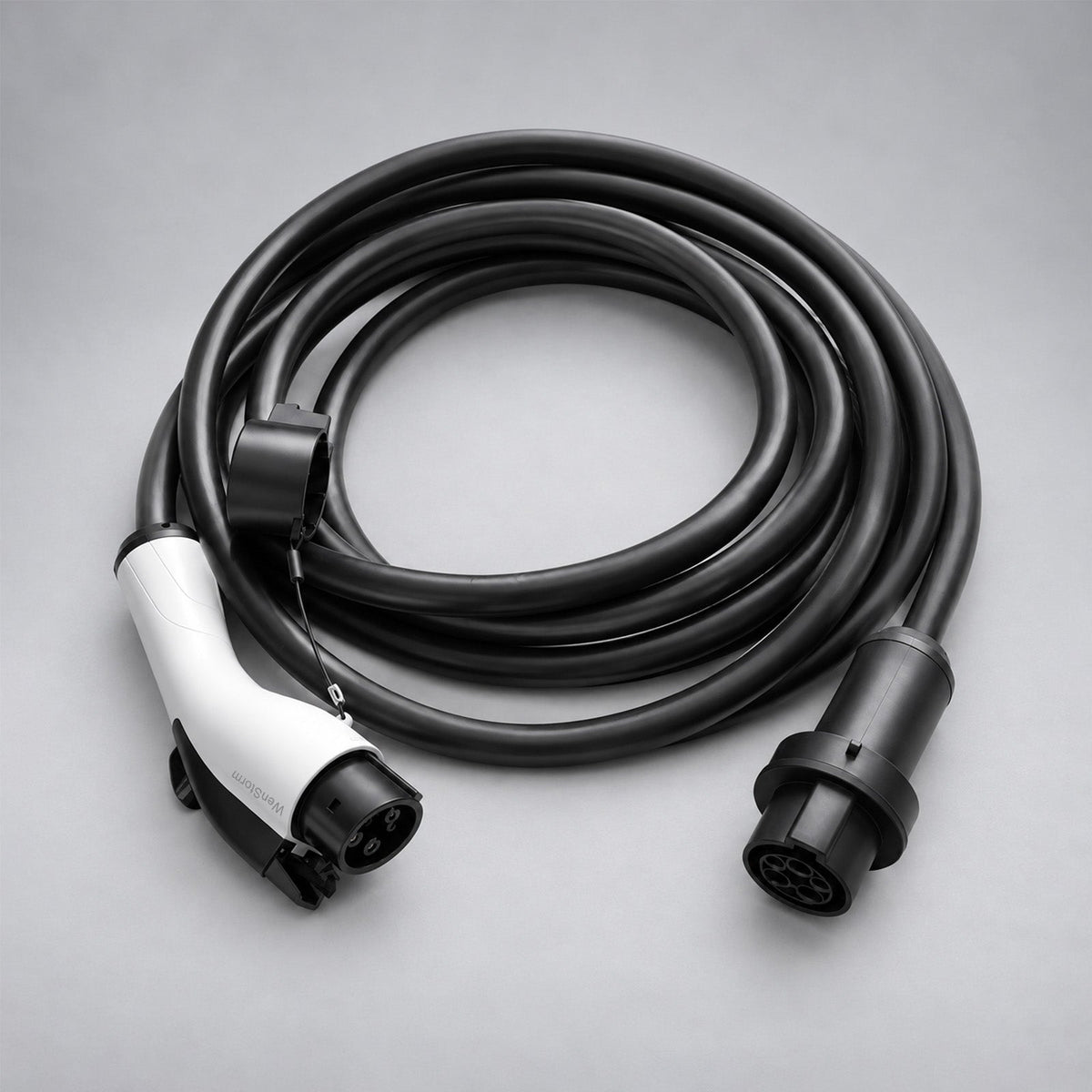

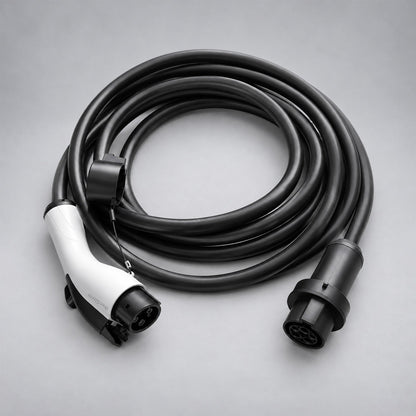

WenStorm J1772 EV Extension Cable for Level 2 Charging

Yes — a J1772-to-J1772 extension cable safely adds vehicle-side reach when it uses heavy-gauge copper conductors and carries the SAE J1772 control-pilot signal through unmodified. The WenStorm J1772 EV Extension Cable does exactly that: 21 to 50 feet of vehicle-side reach, 32A or 50A variants, silver-plated copper contacts, and >10,000 mate/unmate cycle life — without extending the wall-outlet side of the charger.

Not a wall-outlet extension. This is a vehicle-side cable — it goes between the EV charger's built-in J1772 connector and the car's charging inlet, never between the wall outlet and the charger. If your problem is the wall outlet being too far from the parking spot, install a properly rated dedicated circuit closer to the vehicle instead; household and NEMA extension cords are generally not appropriate for continuous EV charging. See Can You Use an Extension Cord With an EV Charger? for the full supply-side vs vehicle-side breakdown.

Tesla note: Tesla's Gen 2 Mobile Connector owner's manual prohibits supply-side extension cords. For a NACS-to-NACS vehicle-side extension for a Tesla or NACS-connector EV, see the Tesla/NACS Extension Cord and confirm your specific EVSE's instructions permit an extension before using one.

Compare across the extension line: Tesla/NACS Extension Cord (for NACS-connector EVs) · Buyer's Guide: J1772 vs NACS (decision framework) · Is 25 ft enough? (length-planning framework).

Can you use an extension cable with a J1772 EV charger?

Yes — on the vehicle side. The extension inserts between the EVSE's built-in J1772 connector and your car's J1772 inlet, adding 21 to 50 feet of reach. It does not extend the wall-outlet side of a portable EVSE (that would be a household extension cord, which is not designed for continuous EV charging loads). The safety topology is preserved: the EVSE still monitors the wall receptacle; the extension carries the same SAE J1772 control-pilot and proximity signals the EVSE would carry directly to your car.

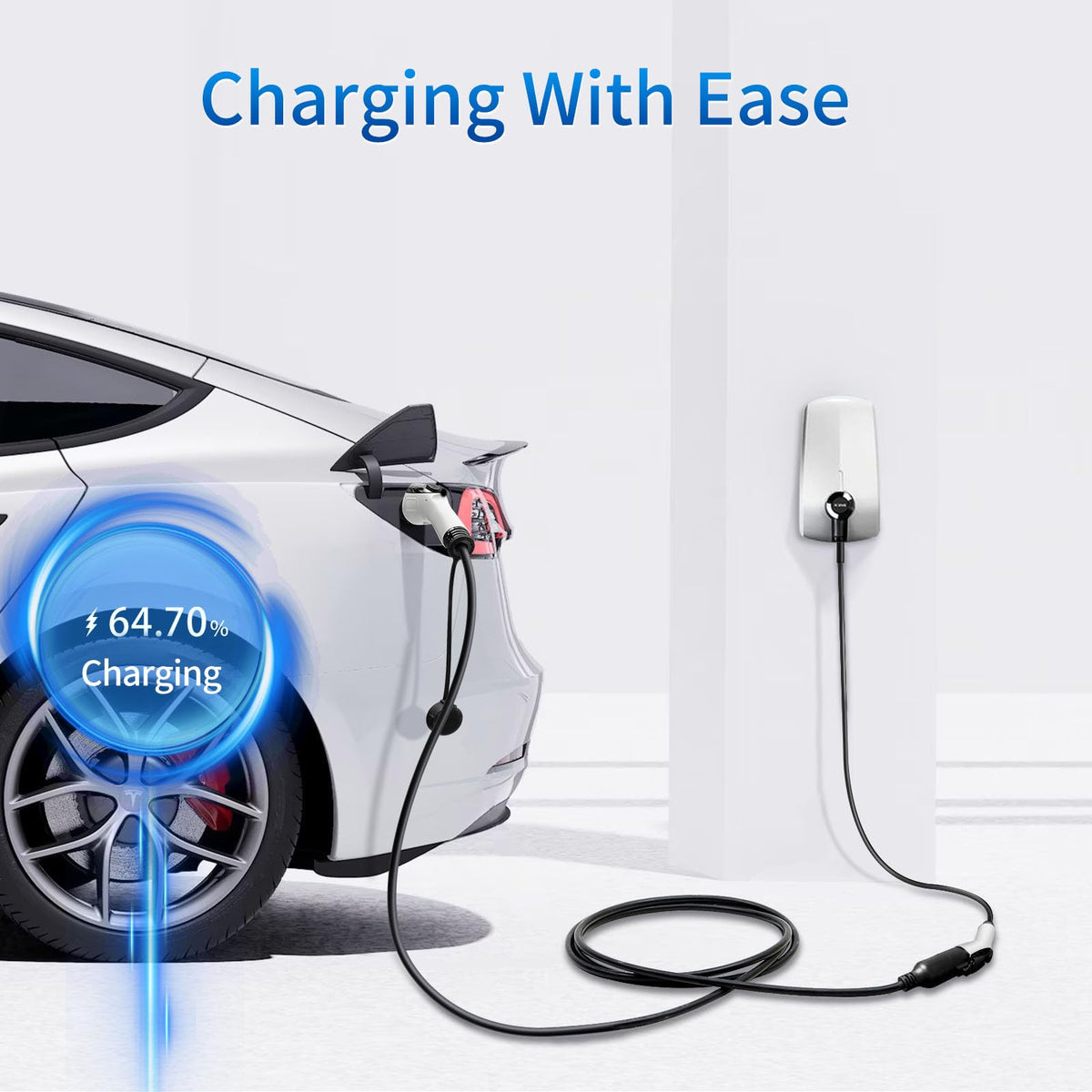

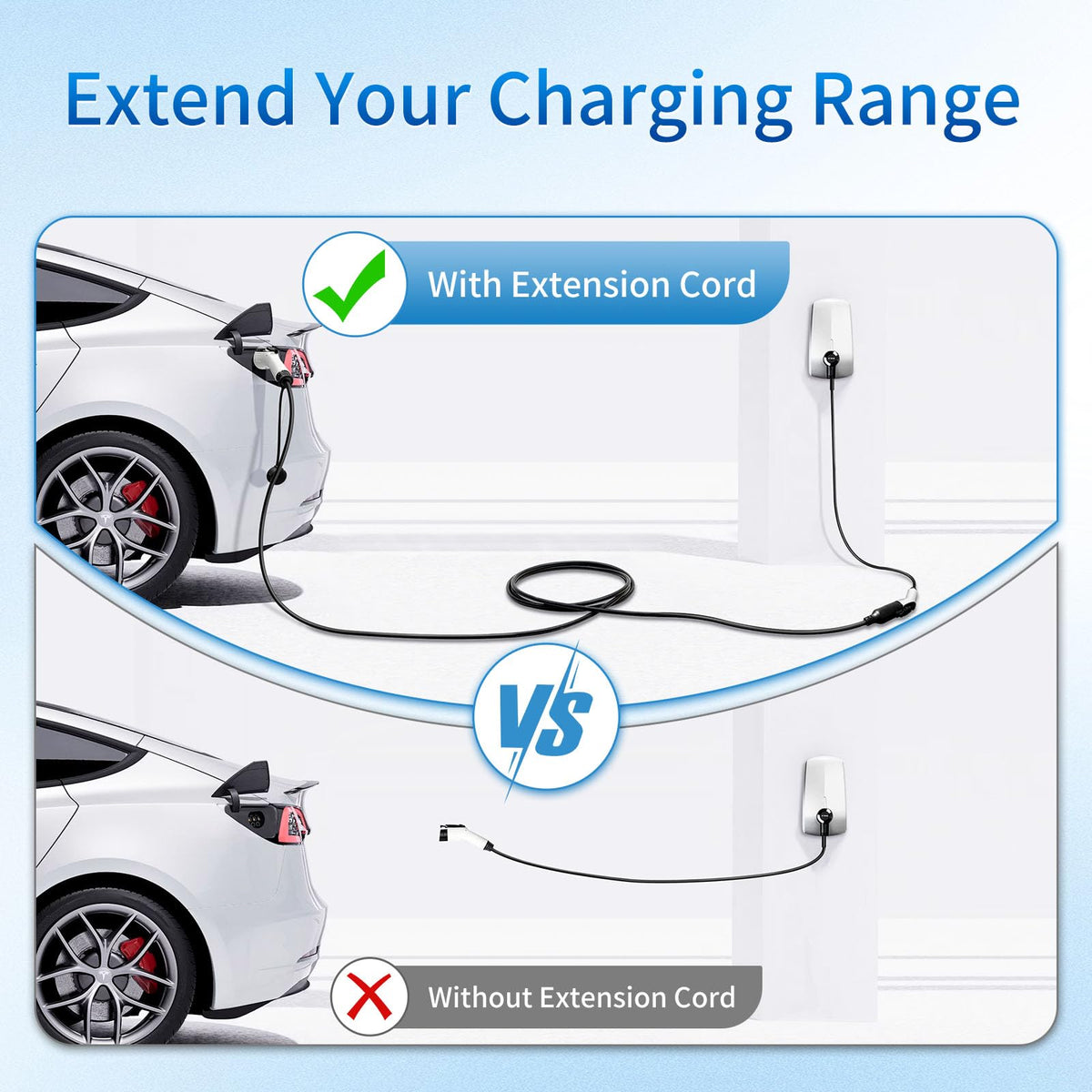

Setup order: wall outlet → EVSE → WenStorm J1772 extension → vehicle. If the outlet itself is too far from your parking spot, the preferred fix is a licensed electrician installing an outlet closer to the parking area — an extension is the second-best answer, not the first.

Which WenStorm variant should I buy?

• 32A EVSE (typical home Level 2 portable, Tesla Mobile Connector, WenStorm Level 2 Portable Charger) — the 32A 21-ft variant is the entry pick. Step up to 25/30/40/50-ft 50A variants for extra length headroom.
• 40A EVSE (Emporia plug-in, Wallbox 40A, Grizzl-E Classic) — 50A variant required. The 32A cable would overheat under continuous 40A load.
• 48A EVSE (Emporia hardwired, Wallbox 48A, Grizzl-E Ultimate 48A, Tesla Wall Connector) — 50A variant only.
• >50A EVSE (Ford Charge Station Pro 80A, Grizzl-E Ultimate 80A) — exceeds this cable's rating. Use a longer-cable EVSE or hardwire relocation instead.

Match the extension's amperage rating to your EVSE's continuous output, not your vehicle's onboard charger. For the full length + amperage decision matrix, see the EV Extension Cable Buyer's Guide.

Key features

Vehicle-side extension only — not for the wall-outlet side

Extends the EVSE-to-vehicle charging connection: wall outlet → EVSE → WenStorm extension → vehicle. It is not for extending the wall-outlet side of an EVSE (that's household extension cord territory — see the FAQ below for the safety reason).

Available lengths and current ratings

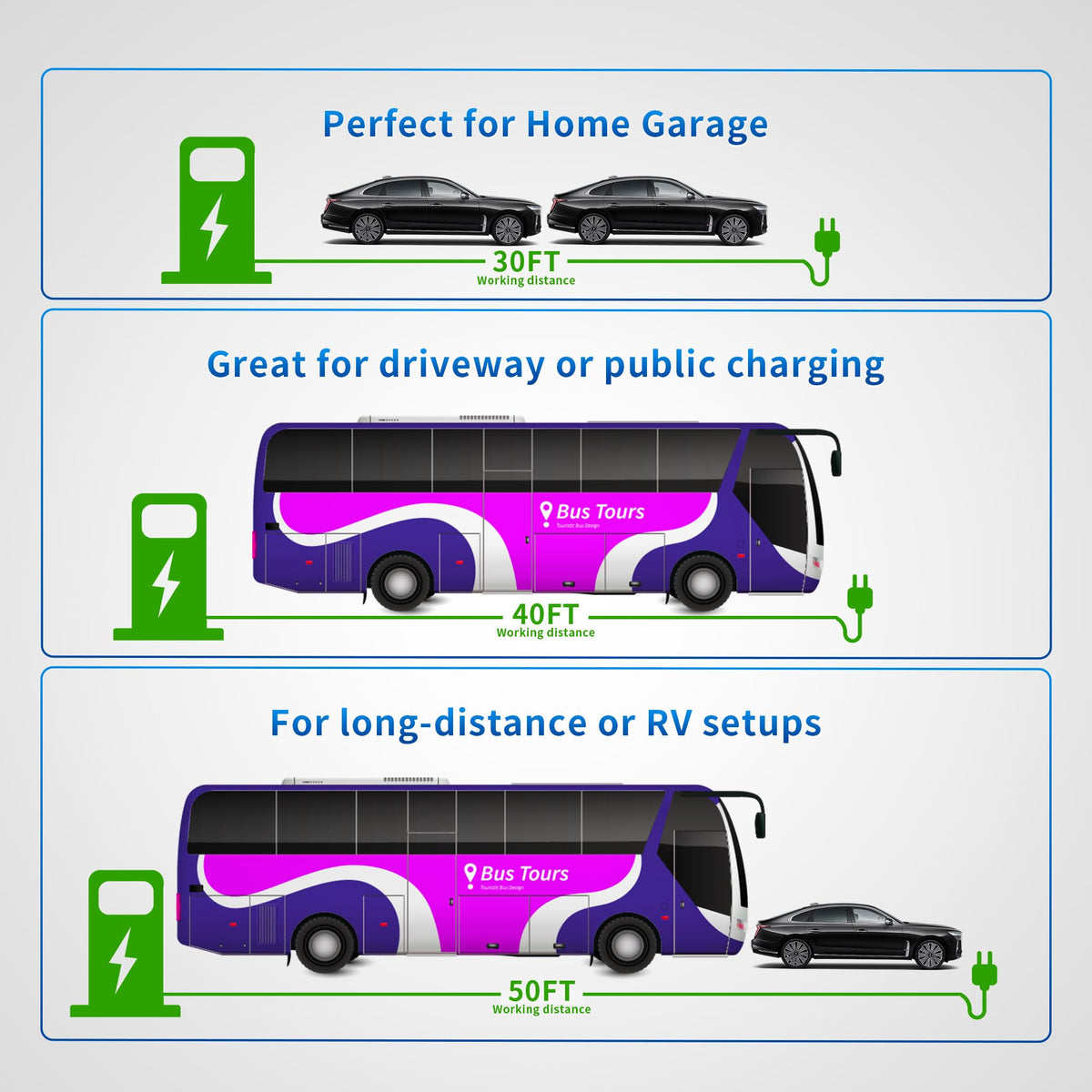

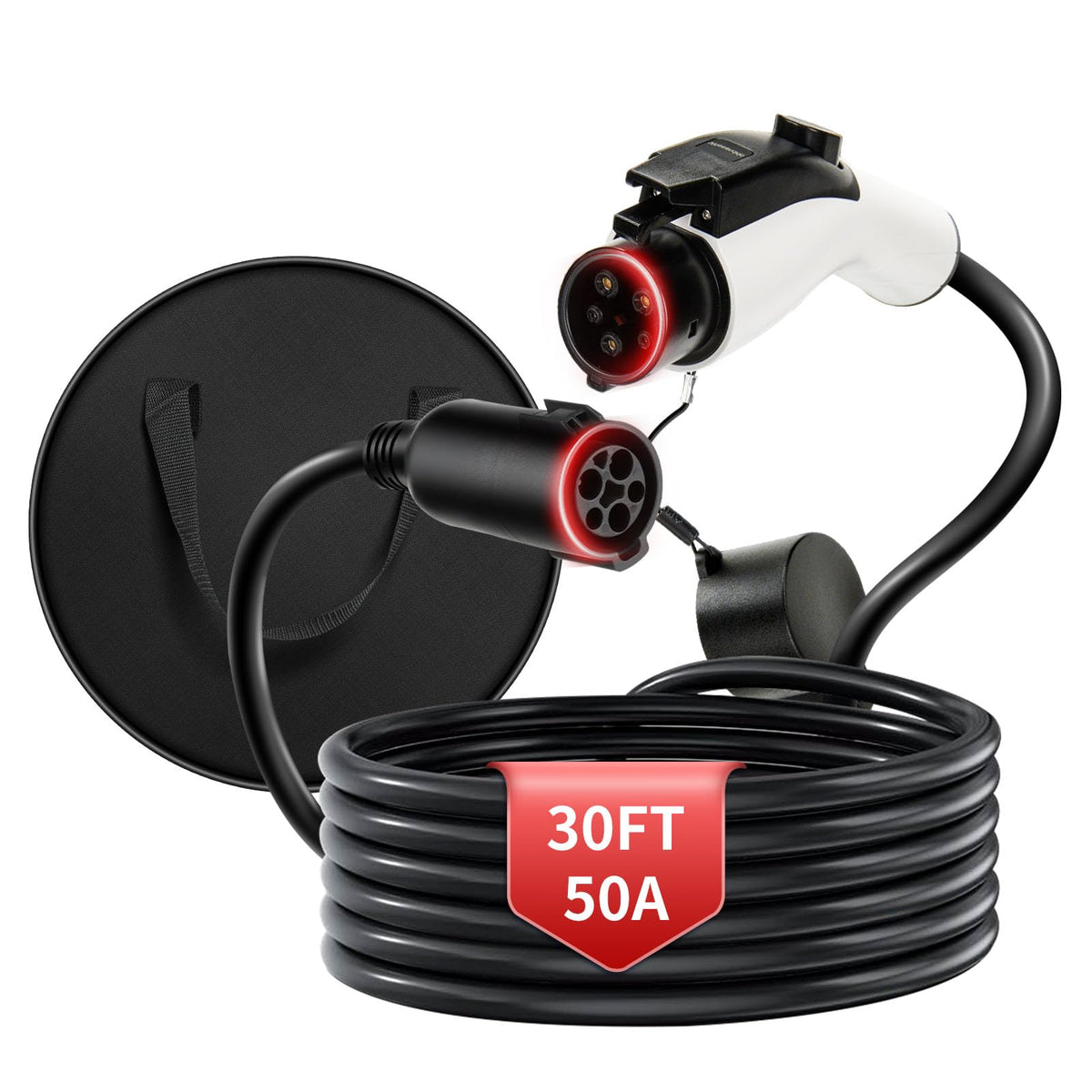

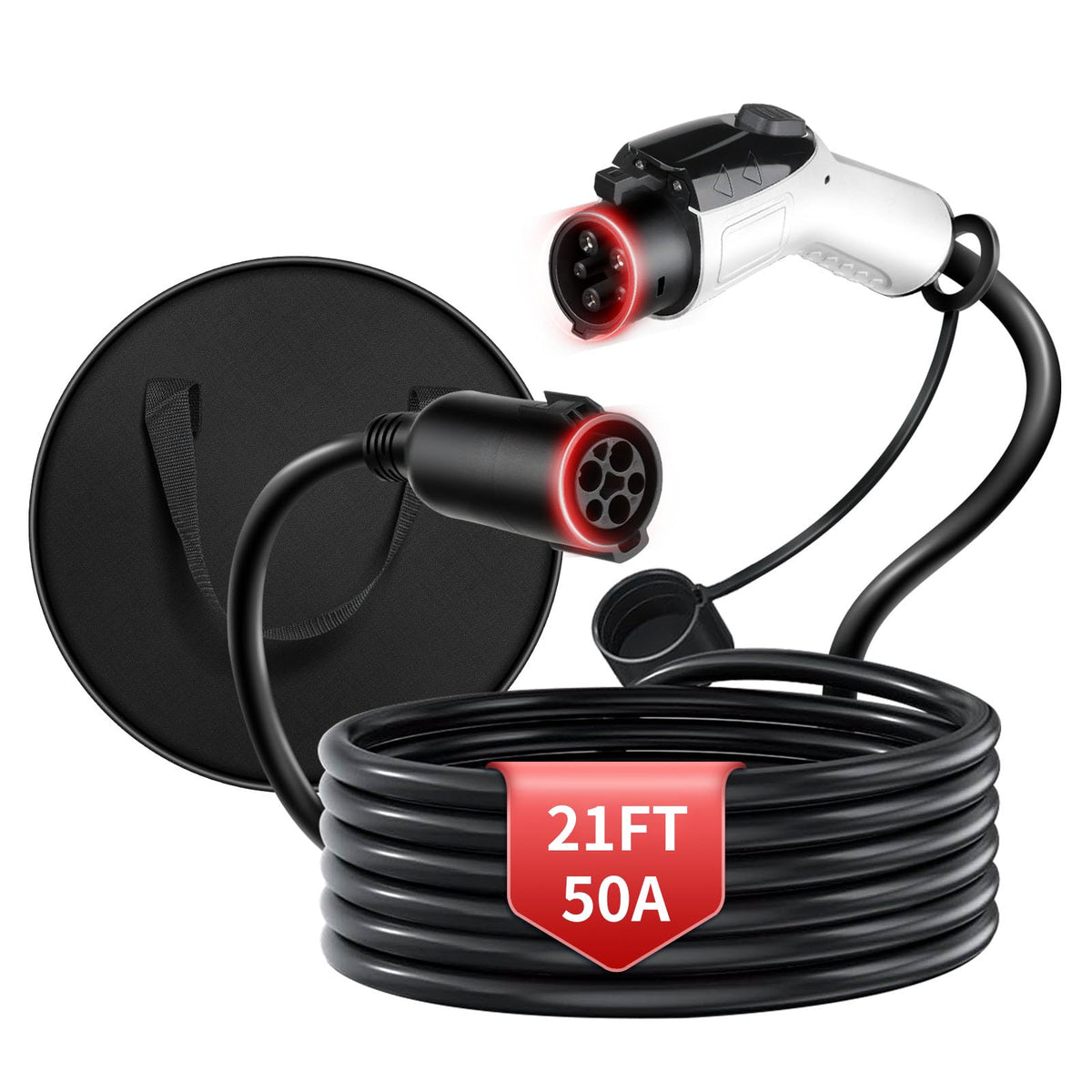

Five length options — 21 ft, 25 ft, 30 ft, 40 ft, 50 ft — in two current ratings: 32A (32A variant) or 50A (50A variant) at 240V continuous. Match the amperage rating to your EVSE's maximum output, not your vehicle's onboard charger. See the "Which WenStorm variant should I buy?" section above for the EVSE-to-variant mapping.

Silver-plated copper contacts

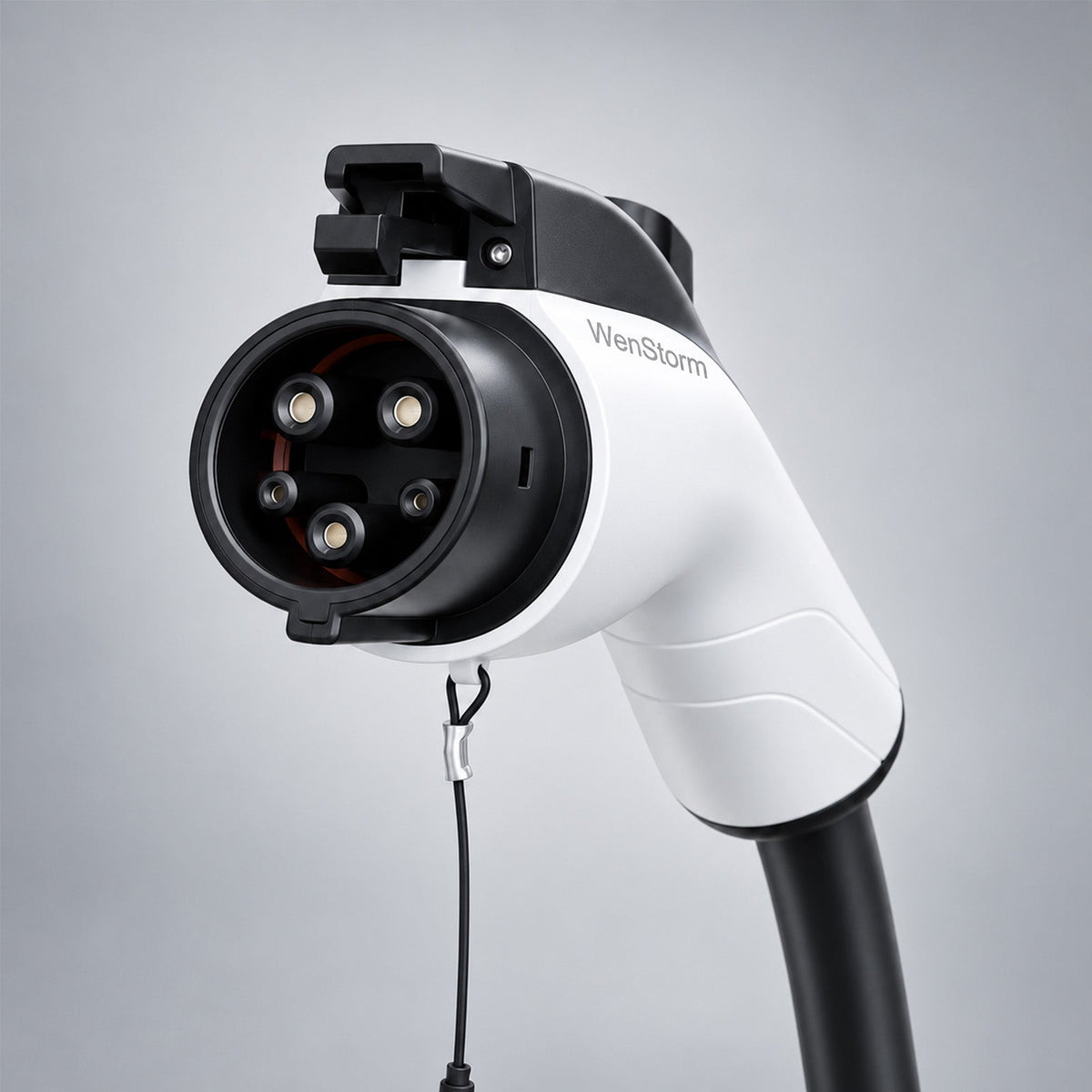

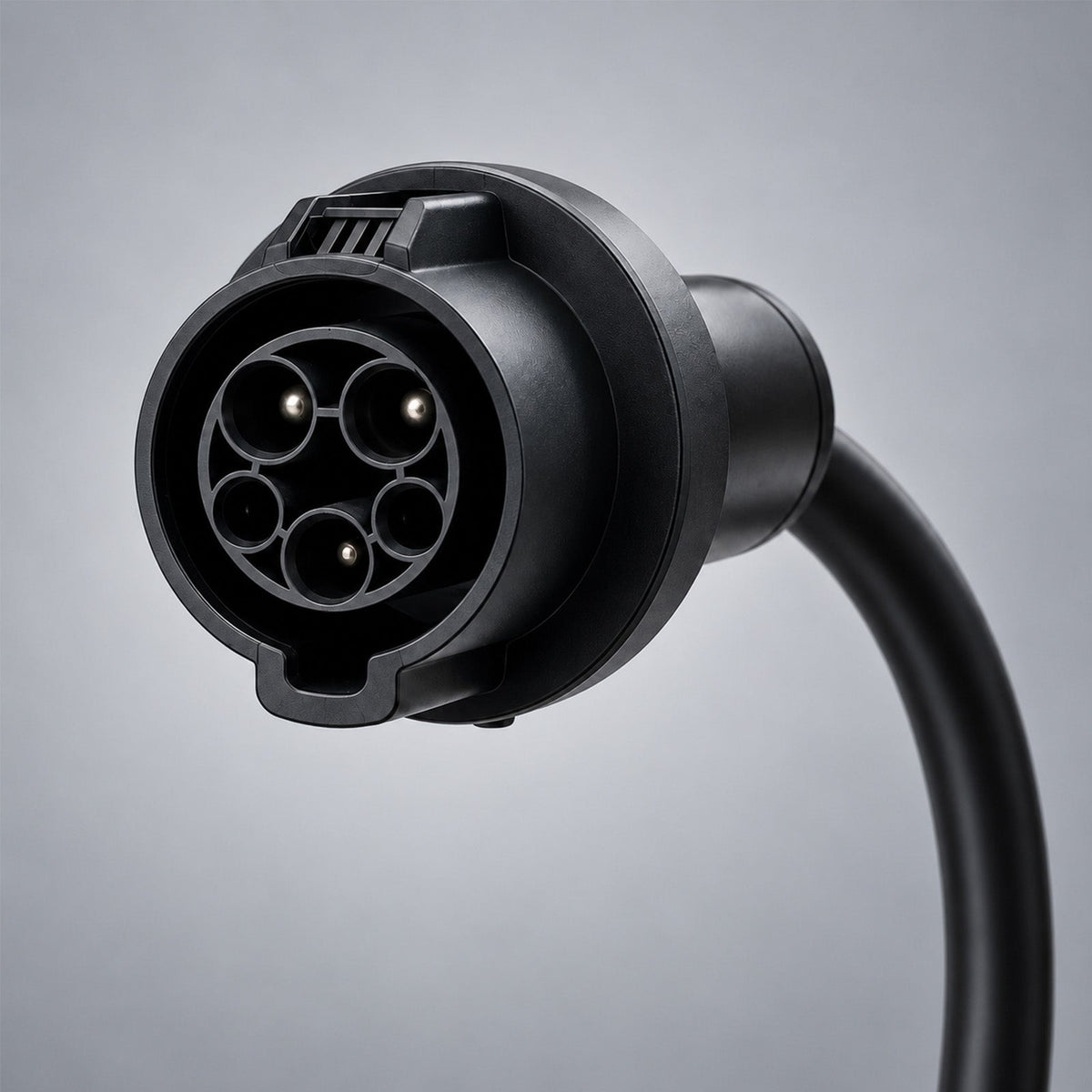

Both J1772 connector ends use silver-plated copper contact pins. Silver has higher conductivity than brass or bare copper, reducing resistance heat at the plug-to-plug junction during long charging sessions. This matches what competing premium brands charge extra for.

Amperage-matched conductor gauge

Heavy 8 AWG copper power conductors on the 50A variant (10 AWG on the 32A variant), sized per NEC 310.16 ampacity tables to carry continuous EV load without overheating. Full construction: 2×8 AWG power + 1×10 AWG equipment ground + 2×18 AWG signal on the 50A variant.

SAE J1772 signaling compliant

The extension carries the J1772 control-pilot and proximity signals through the cable without modification, so your existing EVSE and vehicle recognize the assembly as a normal continuous conductor and do not throw fault codes.

>10,000 mate/unmate cycle life

Tested to more than 10,000 no-load mate/unmate cycles. At one plug/unplug per day, that's 27+ years before mechanical wear reaches the tested limit.

Wide operating envelope — cold-flexible and heat-tolerant

Rated for continuous operation across -30°C to +50°C (-22°F to +122°F) and altitudes up to 2,000 m (6,562 ft). Cold-flexible for Minnesota-winter garage use; heat-tolerant for Phoenix-summer driveway installation.

Built with UL 2263-certified EV cable

The cable component is built to UL 2263 (the standard for EV cable jacket and conductor construction) — see the WenStorm Certification Center for the specific component listing. Each product's certification governs its own rated output and use conditions.

Flame-retardant TPU cable jacket

Flame-retardant TPU compound stays flexible at typical winter garage temperatures, rated for outdoor use across -30°C to +50°C, and resists UV degradation.

Compatible with all SAE J1772 chargers and vehicles

Works with any J1772-connector EVSE — WenStorm, ChargePoint Home Flex, Grizzl-E, JuiceBox, Lectron, Wallbox, Emporia, and OEM Level 1/2 cordsets. On the vehicle side, works with any J1772-inlet EV or plug-in hybrid, and with Tesla vehicles via a standard J1772-to-Tesla adapter.

Frequently asked questions

Does the extension cable reduce charging speed?

Not meaningfully within the cable's rated envelope. At 32A on the 21-ft variant, voltage drop is about 0.5% at 240V — well within NEC's 3% branch-circuit recommendation. At 50 ft and 50A, drop rises to roughly 2% — still below any onboard-charger derating threshold. If you notice slower charging, check the EVSE's app or display first; most modern EVSEs derate for connector temperature or utility load management, not for the cable.

Can I use the 50A extension cable with a 32A charger?

Yes. The cable's rating is a ceiling, not a floor. A 50A-rated cable safely carries any current up to 50A, so it works with 32A, 40A, and 48A EVSEs. You cannot go the other direction — a 32A cable will overheat under a 40A or higher EVSE.

Can I use it outdoors?

Yes. The SAE J1772 connector standard is designed for outdoor operation, and the WenStorm cable jacket is flame-retardant TPU rated for -30°C to +50°C. Seat both connectors fully and keep the coupler junction off the ground; verify the assembled SKU's documented IP rating on the product page before permanent outdoor installation.

Can I connect two extension cables together (chain them)?

No. Every additional coupler introduces resistance and a potential failure point. Buy one extension of the correct length rather than combining two shorter ones. NEC 400.12 restricts flexible-cord routing, including chained use.

Does it work with every J1772 EV?

Yes — with any J1772-inlet EV or plug-in hybrid (Chevy Bolt, Ford Mustang Mach-E, Ford F-150 Lightning, VW ID.4, Hyundai Ioniq 5/6, Kia EV6/EV9, Nissan Leaf, Audi Q4 e-tron, and many others), and with Tesla vehicles via a standard J1772-to-Tesla adapter on the vehicle side.

Is this different from a NEMA extension cord?

Completely different. A J1772 extension has J1772 connectors on both ends (physically incompatible with wall receptacles) and carries the SAE J1772 control-pilot and proximity signals. A NEMA extension cord has standard household plugs (5-15, 6-20, 14-50, etc.) and cannot go between an EVSE and a vehicle. Never use a NEMA extension cord between a wall outlet and an EVSE — every major EVSE manufacturer prohibits this. See Can You Use an Extension Cord With an EV Charger? for the safety rationale.

Should I buy this or replace my charger with a longer-cable one?

Buy the extension if you already own a Level 2 charger you like and just need 10-25 extra feet of occasional reach (parking in a second spot, RV park connections, workplace or travel use).

Buy a new longer-cable charger instead if you don't yet own a Level 2 charger, or if you regularly need more than about 40 ft of total reach from the wall. The WenStorm 32A NEMA 14-50 portable ships with a 25 ft cable and connector-integrated electronics — a purpose-built fixed cable has fewer connection points to inspect than a charger + extension setup.

Related reading

• EV Extension Cable Buyer's Guide: J1772 vs NACS, Length, and What Not to Do — the full connector + length + voltage-drop walkthrough
• Can You Use an Extension Cord With an EV Charger? — safety-corrective answer for the wall-outlet-side question
• Is a 25-Foot EV Charger Cable Long Enough? — how to measure the routed path from EVSE to vehicle

What's in the box

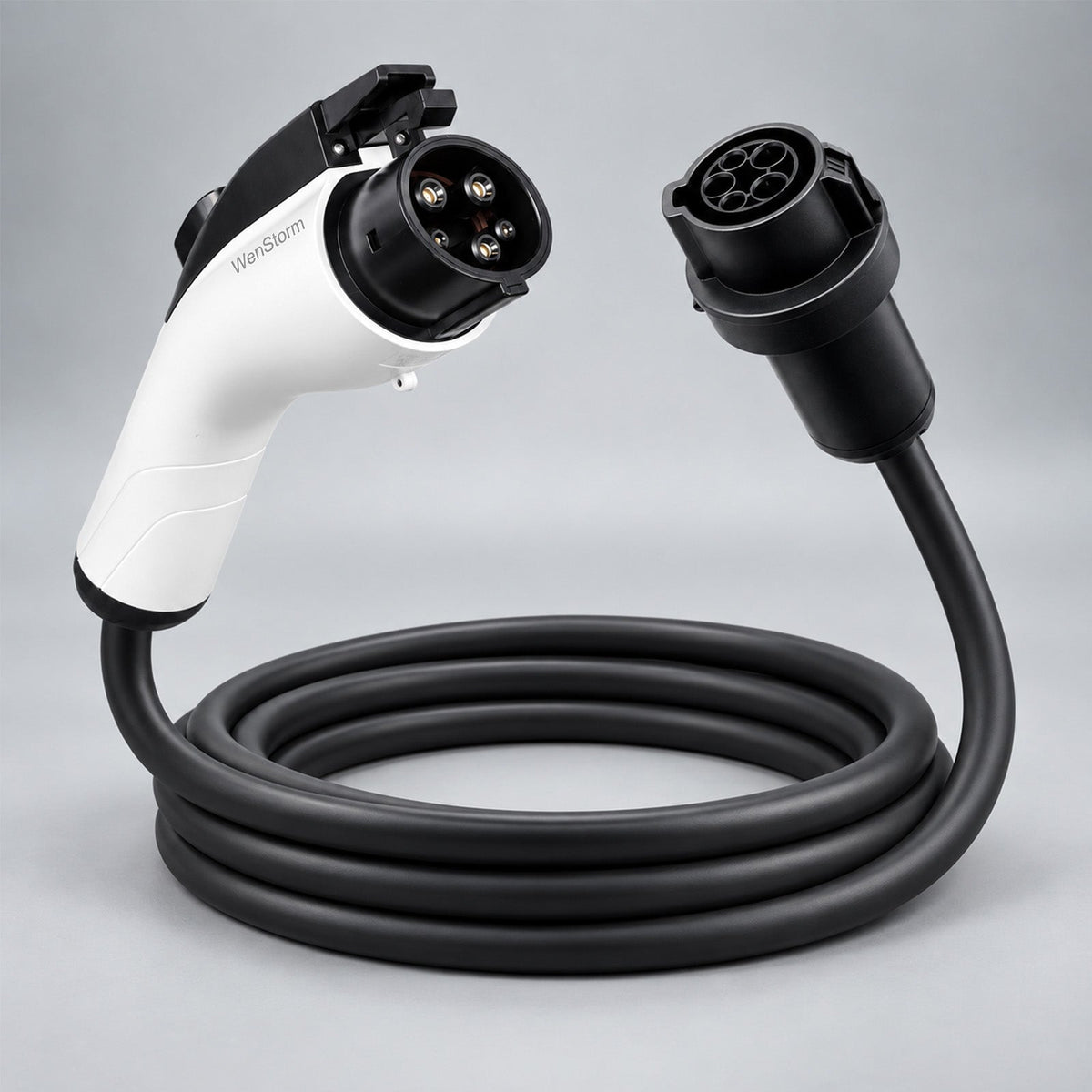

• WenStorm J1772 EV extension cable in your selected length and amperage
• Dust caps for both connector ends
• Storage bag
• Quick-start guide
